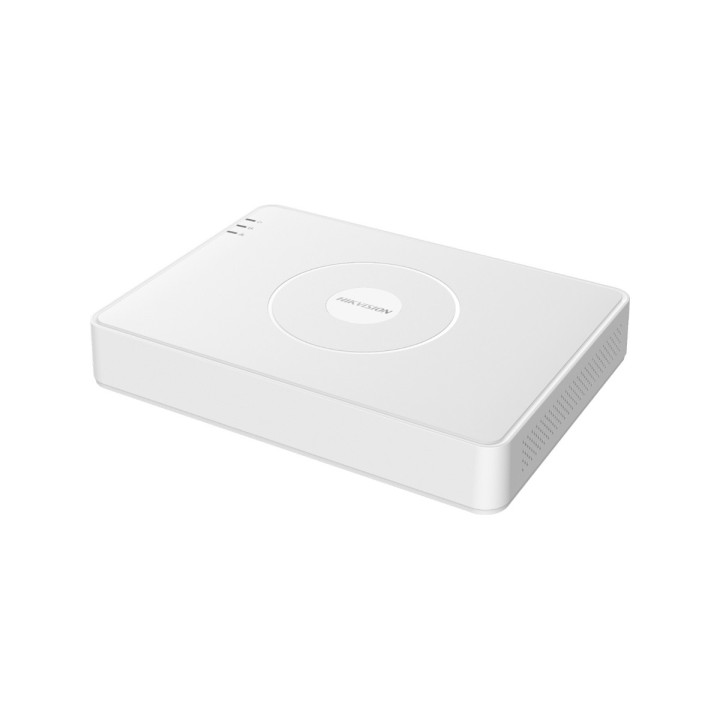

16CH TURBO HD DVR

Hikvision

Specifications

Video Inputs

16-Channel BNC Interfaces Supporting HDTVI, AHD, CVI

And CVBS Signals, Plus Up To 2 Additional IP Camera Channels

(Expandable Up To 18 Channels Total, Up To 5 MP Resolution)

Video Compression: H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264

Recording / Encoding: Up To 1080p Lite @ 15 fps, Or 720p Mainstream

Video Outputs: Simultaneous HDMI And VGA Output At Up To 1920 × 1080 Resolution

Audio: 1 Channel RCA Input, 16 Channels Via Coaxial Cable, And 1 Channel RCA Output

Storage: 1 SATA Interface Supporting Up To 6TB To 10TB Capacity

Network & Interface: 1 RJ45 10M/100M Self-Adaptive Ethernet Port; Supports Hik-Connect For Remote Management

Physical Dimensions: Mini 1U Form Factor Measuring 285 × 210 × 48 mm, Weighing Under 1.8 kg (Without A Hard Drive)

Power Supply: 12 VDC, 2 A (Consumption Under 7W Without A Hard Drive)

Total Bandwidth: 96 Mbps

Remote Connection: 128

Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP, HTTPS, ONVIF

Auxiliary Interface: SATA1, SATA Interface

Capacity: Up To 6 TB Capacity For Each Disk

USB Interface: 2 × USB 2.0

General

Power Supply: 12 VDC, 2 A

Consumption: 7 W (Without HDD)

Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity: 10% To 90%
